Crouzet | Modular Power Supply 100W, 100-240 Vac/24 Vdc, 4.2 A - Ref : 89451010
281,01 €
TTC
401,44 €
401,44 € 281,01 €
30%
Référence:
CRT89451010
Marque:
Crouzet
89451010
3593150048567
Favoris0
Ajouter au comparateur0
Livraison express
Expédition sous 24h/48h
Paiement 100% sécurisés
Besoin d’aide ?
À votre écoute ! Un conseiller vous répond et vous guide au 07 83 12 77 77 ou par email
Livraison offerte
À partir de 250 € TTC d'achat
Fidélité
100 € achetés = 3 € en bon d'achat
- Payez en plusieurs fois
2X
3X
4X
Modular Power Supply 100W, 100-240 Vac/24 Vdc, 4.2 A | Crouzet - 89451010

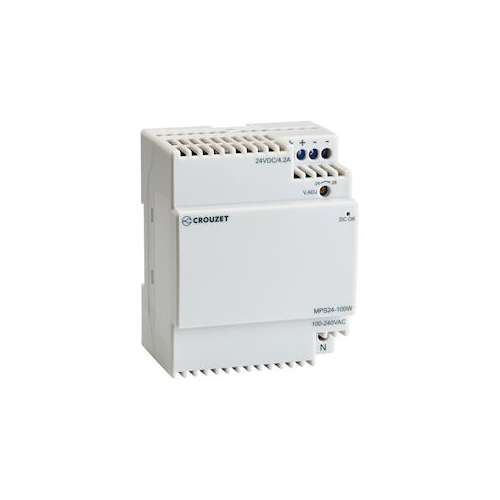

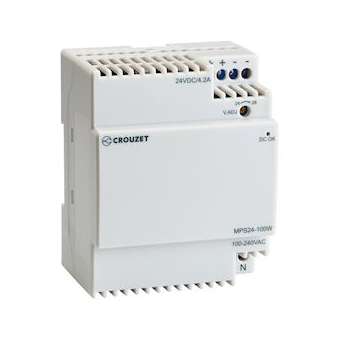

Modular Power Supply 100W, 100-240 Vac/24 Vdc, 4.2 A
Power supply
Crouzet is presenting the new generation of 24V power supplies. This new family of product has been designed to fit into a very wide range of industrial applications, and into the panels of the most common building applications. This range is perfectly suited to be used with all Crouzet 24 VDC products. Ideally convenient for their use in distribution panels thanks to its DIN rail mounting. Smaller Size Space in the panel is more important every day to fit a higher quantity of products to have complex applications, and that's why the next generation of Crouzet's compact family of power supplies are 1 module thinner (the equivalent of 17.5mm or 0.69 inches) in every version. With 4 products that goes from 10 to 100W and their wide voltage input ranges (from 84 to 264 VAC), they allow the supply of single-phase mains electric power to DC power lines requiring 24V DC in a very reliable way. Better Performance These DIN Rail mount power supplies have an increased Energy efficiency up to 90% at 240VAC and Low No-Load Power Consumption. In addition, thanks to the new terminal position, as well as double insulation and a Class II safety input, simplifies wiring of the product and earthing is no longer necessary. In the same way, the NEC Class 2 standard, in accordance with UL1310, allows operation in cases where output currents must be limited under fault conditions.
Power supply
Crouzet is presenting the new generation of 24V power supplies. This new family of product has been designed to fit into a very wide range of industrial applications, and into the panels of the most common building applications. This range is perfectly suited to be used with all Crouzet 24 VDC products. Ideally convenient for their use in distribution panels thanks to its DIN rail mounting. Smaller Size Space in the panel is more important every day to fit a higher quantity of products to have complex applications, and that's why the next generation of Crouzet's compact family of power supplies are 1 module thinner (the equivalent of 17.5mm or 0.69 inches) in every version. With 4 products that goes from 10 to 100W and their wide voltage input ranges (from 84 to 264 VAC), they allow the supply of single-phase mains electric power to DC power lines requiring 24V DC in a very reliable way. Better Performance These DIN Rail mount power supplies have an increased Energy efficiency up to 90% at 240VAC and Low No-Load Power Consumption. In addition, thanks to the new terminal position, as well as double insulation and a Class II safety input, simplifies wiring of the product and earthing is no longer necessary. In the same way, the NEC Class 2 standard, in accordance with UL1310, allows operation in cases where output currents must be limited under fault conditions.
CRT89451010
Fiche technique
- Quantité minimum
- 1
- Multiple de vente
- 1
- Code Douane
- 85044090
- Gamme
- Power supply
- profondeur
- 55.6 mm
- hauteur
- 72 mm
- Classe de protection (IP)
- IP20
- Degré de protection (NEMA)
- 1
- largeur
- 90 mm
- Type de tension d'alimentation
- AC
- tension de sortie ajustable
- Oui
- tension d'alimentation assignée à CA 60 Hz
- 24 V
- protégé contre les courts-circuits
- Oui
- courant de sortie max. 1
- 4.2 A
- tension d'alimentation assignée à CA 50 Hz
- 24 V
- adapté à un montage sur rail
- Oui
- tension de sortie CA
- 24 V
- stabilisé
- Oui
- montage mural possible
- Oui
- finition du raccordement électrique
- borne à vis
- montage possible sur barres profilées
- Oui
- adapté aux fonctions de sécurité
- Oui
- tension de sortie réglée
- Oui
- hauteur d'encastrement
- 94 mm
- SIL conformément à IEC 61508
- sans
- niveau de performance selon EN ISO 13849-1
- sans
- montage direct possible
- Oui
- puissance dissipée
- 100 W
